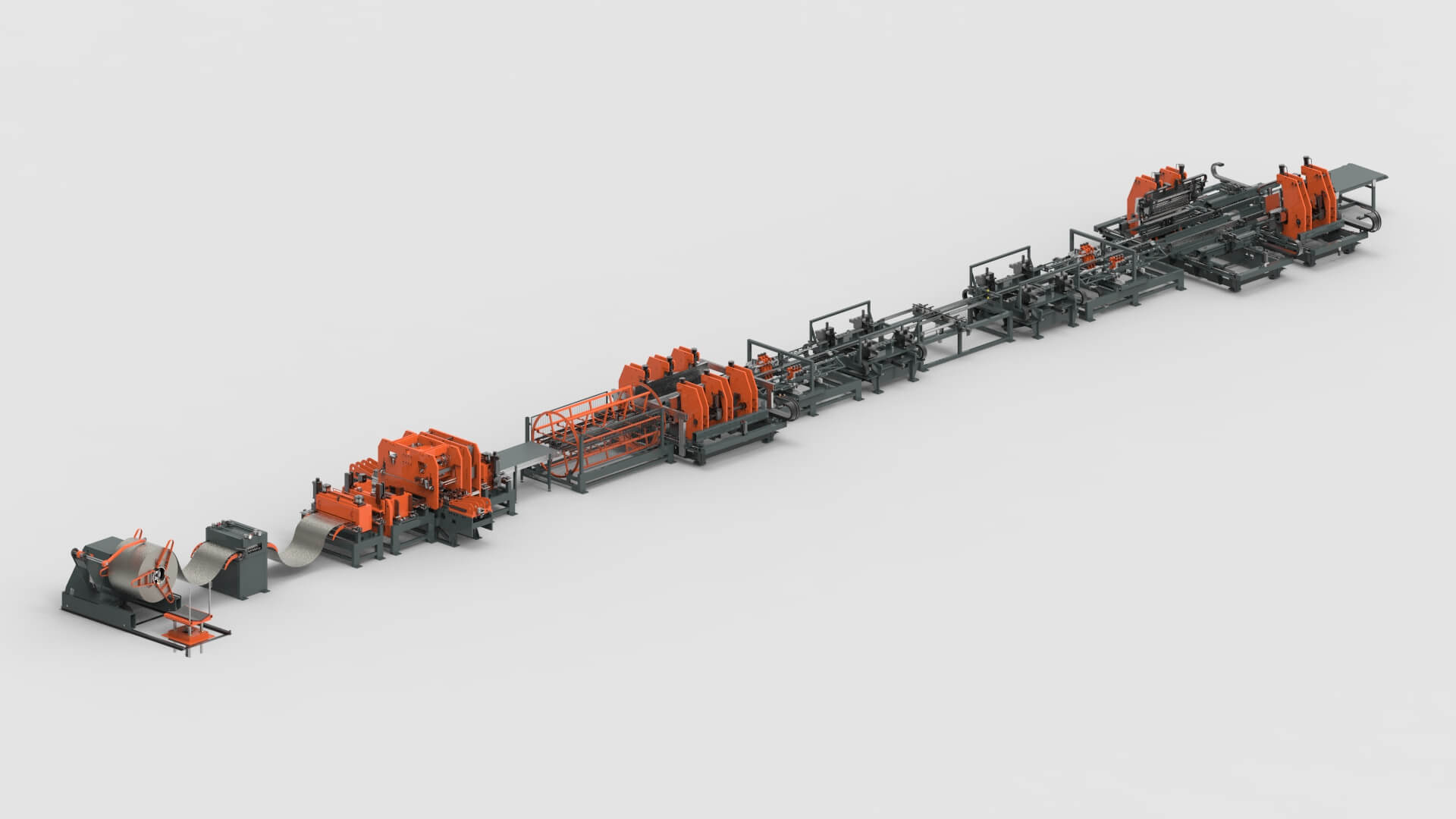

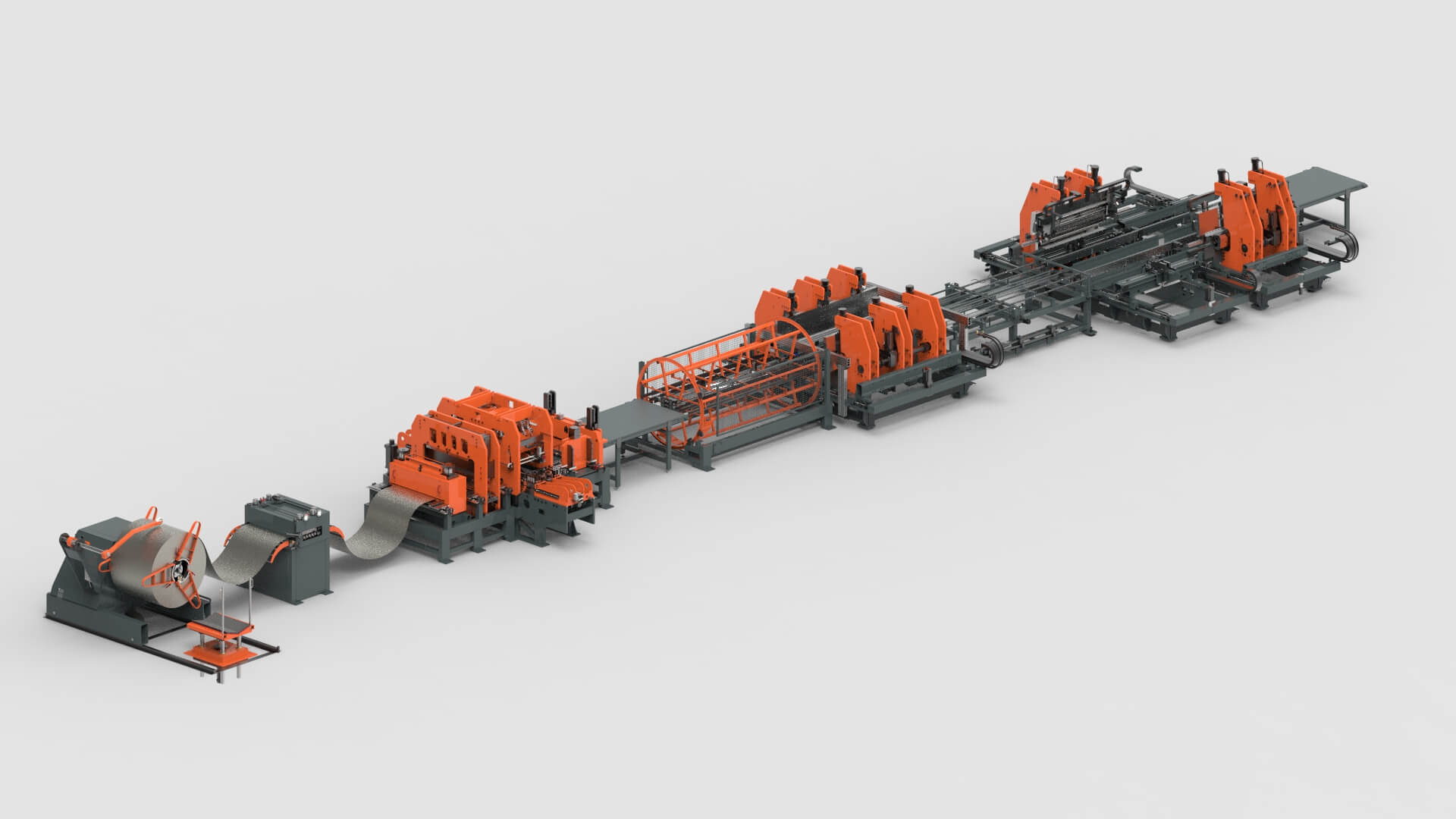

Sheet Metal Production Lines for Shelving Systems

Our sheet metal production lines produce Shelving Systems. These products can be used at large warehouses and logistics centers. Thanks to the large variety of complex and extremely strong corner joints, our sheet metal production lines guarantee maximum bearing capacity of the Shelving System (up to a maximum of 300 kg). In combination with the high productivity of the lines, we emphasize our quality and the lowest cost price per product.

  • (galvanized) Steel
  • 0.5 - 2 mm
  • 6 - 10 sec/ part

Shelving products

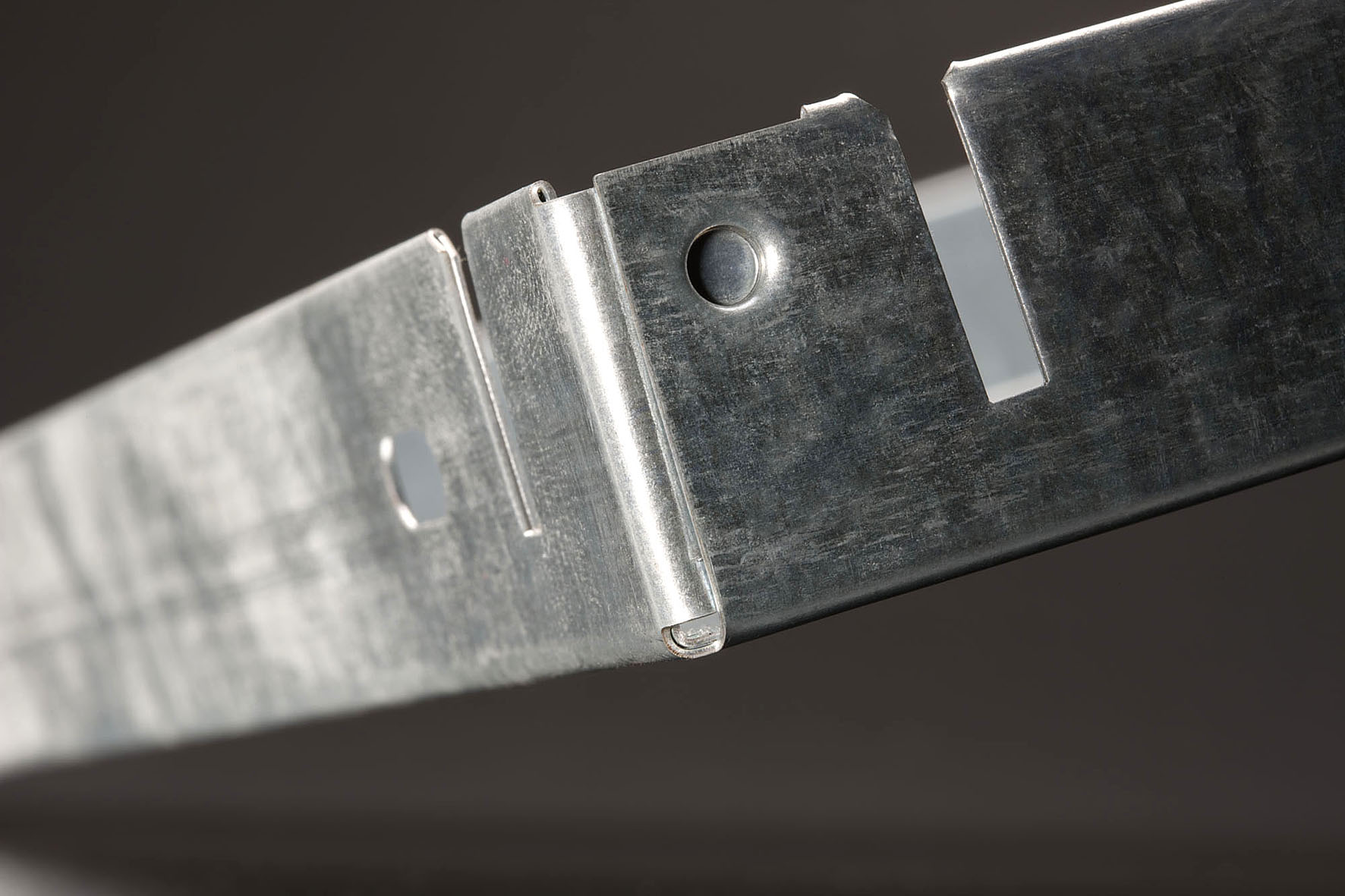

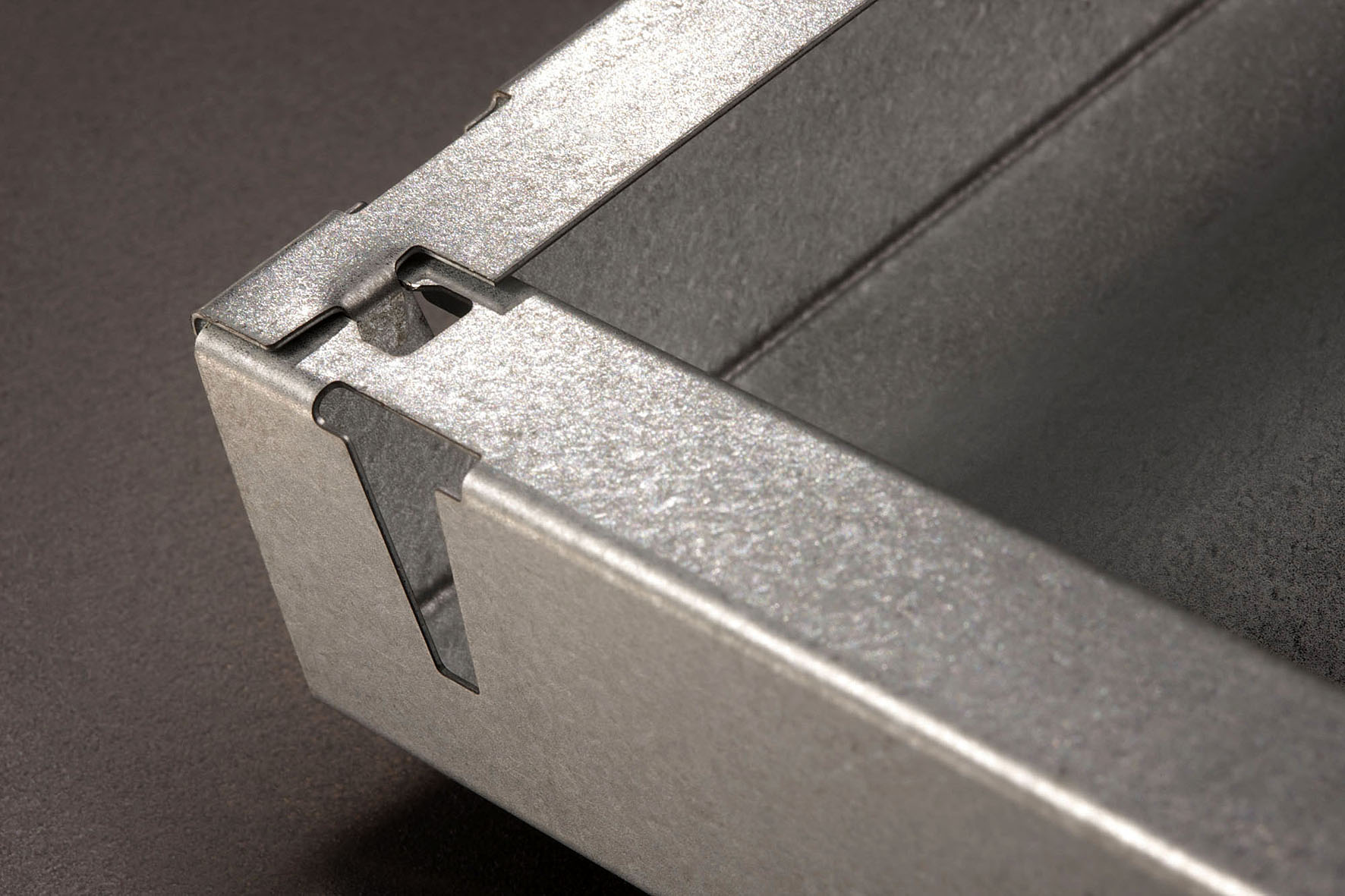

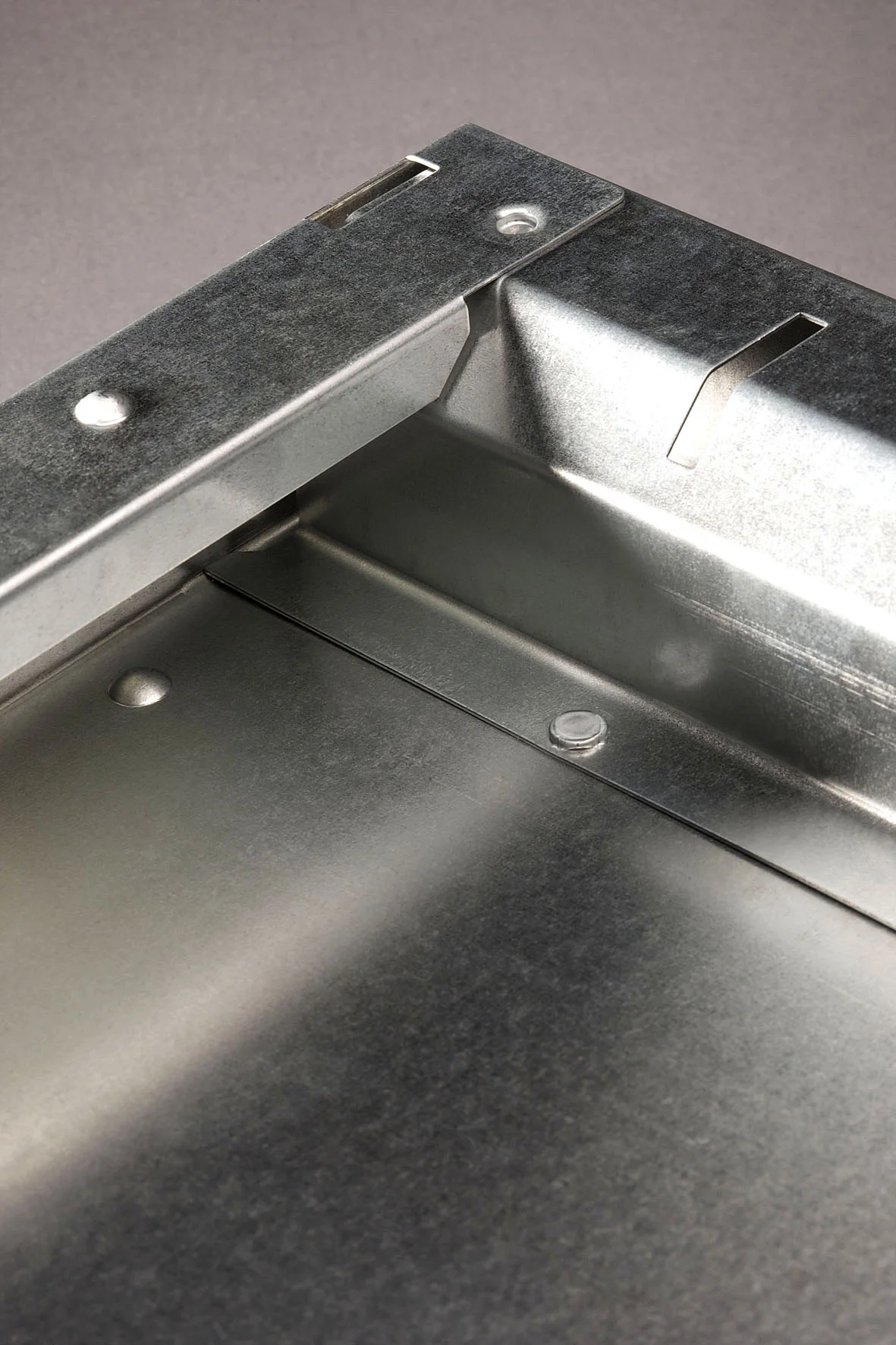

Thanks to the strong corner joints and clicked and welded or otherwise connected reinforcement profiles and bent tube shapes or double-bent edges, our sheet metal production lines deliver Shelving Systems with an extremely high bearing capacity. Moreover, these features ensure welcome cost savings and space economy. Our lines can apply information to your products, such as your company logo, batch number or maximum bearing capacity.

PBL-1550 for Shelving Systems: The World's Fastest Panel Bender

WEMO sheet metal production lines produce Shelving Systems at an output of a minimum of 6 to a maximum of 10 seconds per Shelf. The sheet metal production lines process any embodiment by means of the freely programmable tube shapes on the long side or on the front side. Our lines produce accompanying rear panels without extra investments in bending or profiling tools. Combining different applications (feeding, punching, bending and joining) makes the production of total Shelving units packages possible.

The PBL-1550 for Shelving Systems in a nutshell, with facts and figures:

  • Production speed: 6 – 15 sec / panel

  • Width: 70 – 1500 mm

  • Length: 320 – 1550 mm

  • Material type: (pre-coated) steel

  • Material thickness: 0.5 – 2 mm
